Now taking PreOrders!

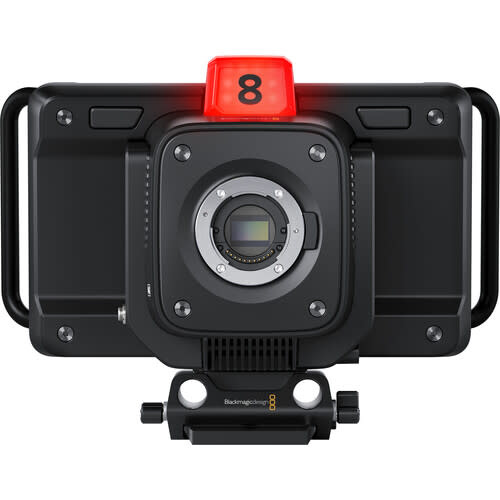

The Blackmagic Studio Camera 4K Plus has been specifically designed as the perfect camera for ATEM Mini. It's the same high quality broadcast camera, but the HDMI centric design removes all the expensive broadcast connections so it's much lower cost. The HDMI is incredibly powerful as it connects video to the ATEM Mini, while at the same time camera control, tally and the remote record trigger is sent to the camera using the same HDMI connection. That makes it very fast to set up for a job.
17.78mm x 10mm (Four Thirds)
Active MFT Mount.
Iris, focus, zoom on supported lenses.
13 Stops.
0dB and 18dB gain.
f11 with 2160p59.94.
f12 with 2160p50.
at 2,000 lux with 89.9% reflectance.
63dB for 2160p.
3840 x 2160 (Ultra HD) up to 60 fps.
23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 frames per second.
Off-speed frame rates up to 60 fps in Ultra HD.
Auto focus available using compatible lenses.

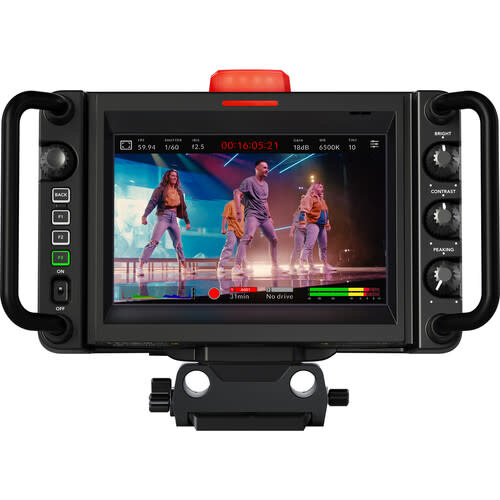

7 inch 1920 x 1200
LCD capacitive touchscreen.
600 nits
Touchscreen camera settings and menus with rotary settings dial, program button, F1, F2 and F3 assignable function buttons, brightness contrast and peaking dials.
2 x 1/4 inch tripod mount.
1 x 3/8 inch tripod mount.
1
1 x 3.5mm Stereo Input. Can also be used for Timecode input.
1 x 3.5mm mini jack for headphones.
Remote camera control over HDMI.

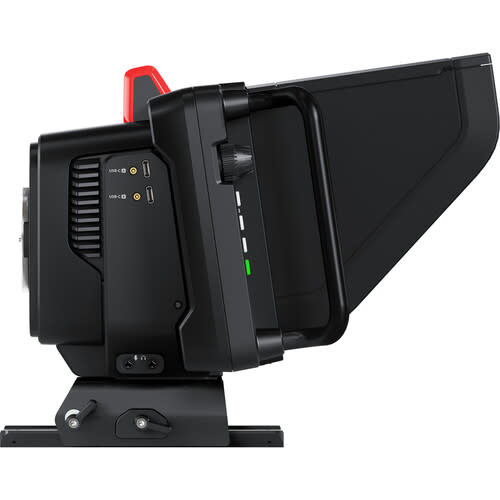

2 x USB Type‑C 3.1 Gen 1 (up to 5Gb/s) expansion ports for external recording and focus / zoom demand connection. Software updates using USB‑C Port A.
Integrated stereo microphone.
1 x mono speaker.
None
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60,
1080i50, 1080i59.94, 1080i60
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Television standard sample rate of 48 kHz and 24‑bit.
2 x USB-C 3.1 Gen 1 expansion ports for external media for recording Blackmagic RAW.
Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Blackmagic RAW Constant Bitrate 3:1,
Blackmagic RAW Constant Bitrate 5:1,
Blackmagic RAW Constant Bitrate 8:1,
Blackmagic RAW Constant Bitrate 12:1,
Blackmagic RAW Constant Quality Q0,
Blackmagic RAW Constant Quality Q1,
Blackmagic RAW Constant Quality Q3,
Blackmagic RAW Constant Quality Q5,
2 x USB‑C 3.1 Gen 1 expansion ports for external media.
Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 in Ultra HD 3840 x 2160 at the selected frame rate.
Storage rates based on 30 frames per second.
3840 x 2160 (Ultra HD)
Blackmagic RAW 3:1 - 127 MB/s
Blackmagic RAW 5:1 - 77 MB/s
Blackmagic RAW 8:1 - 48 MB/s
Blackmagic RAW 12:1 - 32 MB/s
Blackmagic RAW Q0 - 96 to 190 MB/s
Blackmagic RAW Q1 - 64 to 153 MB/s
Blackmagic RAW Q3 - 43 to 109 MB/s
Blackmagic RAW Q5 - 26 to 64 MB/s
Constant Quality storage rates quoted are indicative only.
Actual storage rates are entirely dependent on image subject matter.
Blackmagic Zoom Demand and Blackmagic Focus Demand for controlling your camera and lens from tripod handles.
Blackmagic Control Protocol over HDMI for external control when used with a compatible ATEM switcher with ATEM Software Control or ATEM Advanced Panel. Includes control of some camera settings, focus, iris and zoom with compatible lenses, color corrector, tally and record start and stop to external media via USB expansion port.
DaVinci YRGB
1 x front facing for talent,
1 x rear facing for operator.
