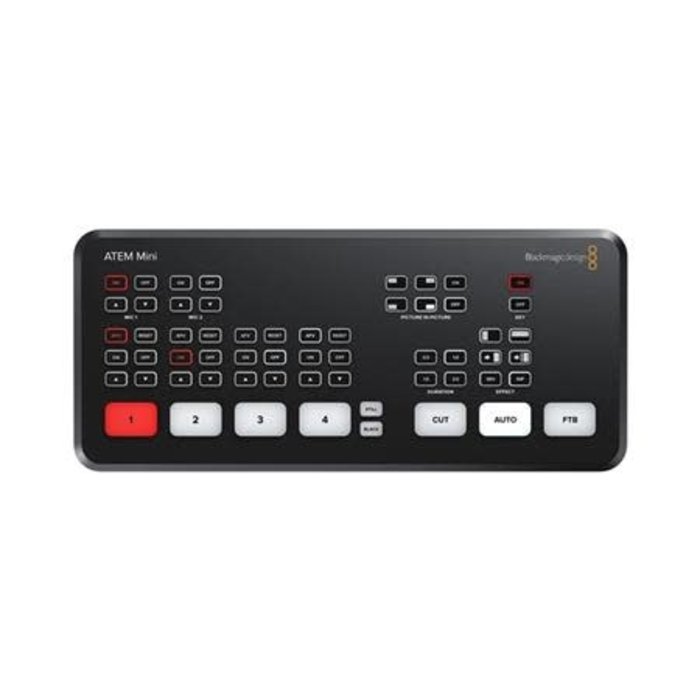

Blackmagic Design Blackmagic Design ATEM Mini HDMI Live Stream Switcher

Home / Blackmagic Design ATEM Mini HDMI Live Stream Switcher

$295.00 Incl. tax

Introducing low cost, multi-camera, live production with advanced broadcast features. ATEM Mini switchers make it easy to create professional multi-camera productions for live streaming to YouTube and innovative business presentations using Skype or Zoom!

Availability: Out of stock
Share: love: or compare:

Product Details

More on the way!  On order and arriving soon.


Designed for multicamera live streaming to the internet or broadcast applications, the compact ATEM Mini from Blackmagic Design provides gaming consoles, corporate computer streams, or HD cameras a four-input live production switcher with an integrated control panel. The four HDMI inputs are available on the rear of the chassis and they input up to 1080p60 video. There is also an HDMI output for a projector or external monitor, a USB Type-C output for streaming up to 1080p60 video to a computer, and an RJ45 10/100 Ethernet port for system management, remote control, and upgrades.

The control surface features easy-to-view, backlit control buttons to enable selecting camera inputs, controlling transitions, keyers, settings, and the DVE. The ATEM Mini features upstream and downstream keyers, an advanced chroma keyer, two linear/luma keyers, a DVE transition keyer, a pattern generator, and two-color generators. There is also media player support for fill and key images, which supports up to 20 stills in PNG, TGA, BMP, JPEG, and TIFF formats. The HDMI output supports a minimum of 1366 x 768 resolution for monitoring your stream. It also supports the ATEM Software Control Panel via Ethernet, and it supports control and configuration using the ATEM Mini.

Transitions

Available transitions include:
  • Cut: When you press the cut button, ATEM instantly changes from your current program source to the preview source. Cuts can be performed by directly selecting sources or by pressing the cut button to switch to the next source.
  • Mix: The mix, or dissolve, gradually transitions from one source to the next by creating a smooth blend. You can set custom timings to manually blend the transition.
  • Dip: Just like mix transitions, a dip transition is a gradual blend that includes either a solid color, graphic, or another clip between the two video sources. Dips to black or white between sources are the most popular, or you can use logos or sponsor graphics.
  • Wipe: Built-in wipe patterns include circles, diamonds, squares, and more. Shapes and patterns can be inverted or softened, and can even have customized colored borders.
  • DVE: With the powerful built-in Digital Video Effects processor, or DVE, you can push, spin, squeeze, or swoosh your live video from one camera to the next with incredible built-in transitions. DVE transitions can be flip-flopped and reversed, giving you even more transition options.

Upstream Keyer

Layer live video over other video sources or graphics with the Upstream Keyer. You can use luma key, linear key, pattern key, or shoot against a green screen and use chroma key to instantly composite the video over virtual sets.
  • Luma key: Luma keys work best with high-contrast images, like white elements on a black background, so you can use the contrast to cut the black background and replace it with live video or graphics.
  • Linear key: Get clean, high-quality results with linear keying by using two separate sources for the fill and the key to create one video image. The fill signal contains the video to be stacked over the background, while the key signal contains a grayscale mask to cut out, or mask, the area to be filled.
  • Chroma key: Used every day for TV weather forecasts, chroma keys are a powerful way of combining live images in real-time. The presenter typically stands in front of a green or blue background and the chroma keyer will remove only that color and combine it with another image, such as a video or graphic.
  • Pattern key: Combine live images with any of the built-in wipe patterns to combine live images or graphics with geometric shapes. You get full control over softness, symmetry, size, and position to create unique picture-in-picture effects that can be transitioned to as easily as any live source.

Downstream Keyers

The ATEM Mini switcher includes one downstream keyer, so you can add high-quality graphics like logos, bugs, and titles from the built-in media player over the live stream program output. Downstream keyers are the last layers of keying, so they overlay all video switched to the main program output.

Audio Mixer

The built-in audio mixer lets you control both camera and external audio with precision level and balance adjustments on all six available audio inputs and two channels. The mixer features selectable On/Off/Audio-Follow-Video per channel, plus it has separate gain control per channel, level and peak metering, and new Fairlight audio enhancements such as compressor, gate, limiter, six bands of parametric EQ, and master gain control.

Monitor Output

The HDMI monitor output allows you to see your sources, graphics, preview, and program output on a single screen.

Media Player

Eliminate external character generators by storing up to 20 broadcast quality RGBA graphic files in the media pool. The one media player appears as input sources to your switcher. You can transition to graphics as full-frame video, or feed them to the keyers for overlaying video. Popular image formats such as PNG, TGA, BMP, GIF, JPEG, and TIFF are supported.
